Vertical Log Splitter USP 22 HZ/3

The USP 22 HZ/3 with a splitting power of 22 tons and PTO shaft is a premium model from SÜMA BGU-Maschines.
Category: SKU: 93643

Additional information


PTO shaft

Rated power

Tractor power requirement: 20 kW / 27 PS

Splitting power

22 t

Log length

max. 1100 mm

Extended piston rod (all UP)

1050 mm

Speed forwards 1

13/1050 s/mm

Zylindervorlauf Speed forwards 2

6/1050 s/mm

Return speed

8/1050 s/mm

Height w. retracted cylinder (down)

2008 mm

Height with uplifted cylinder

2800 mm

Dimensions (W x H x L)

1300 x 2700 x 1300 mm



  • according to the European safety standard EN 609-1
  • Two-stage control valve for increased ram forward speed (fast splitting cycle)
  • Stainless brass pads allow smooth sliding of the wedge
  • Mechanical two-hands control
  • Fully retractable ram for road transportation and storage purposes
  • Solid steel frame with inbuilt hydraulic oil tank
  • Advanced technology with cast iron pumps – Reduced noise for PTO variants
  • Standard Universal hitching to any kind of tractor Cat. I or II

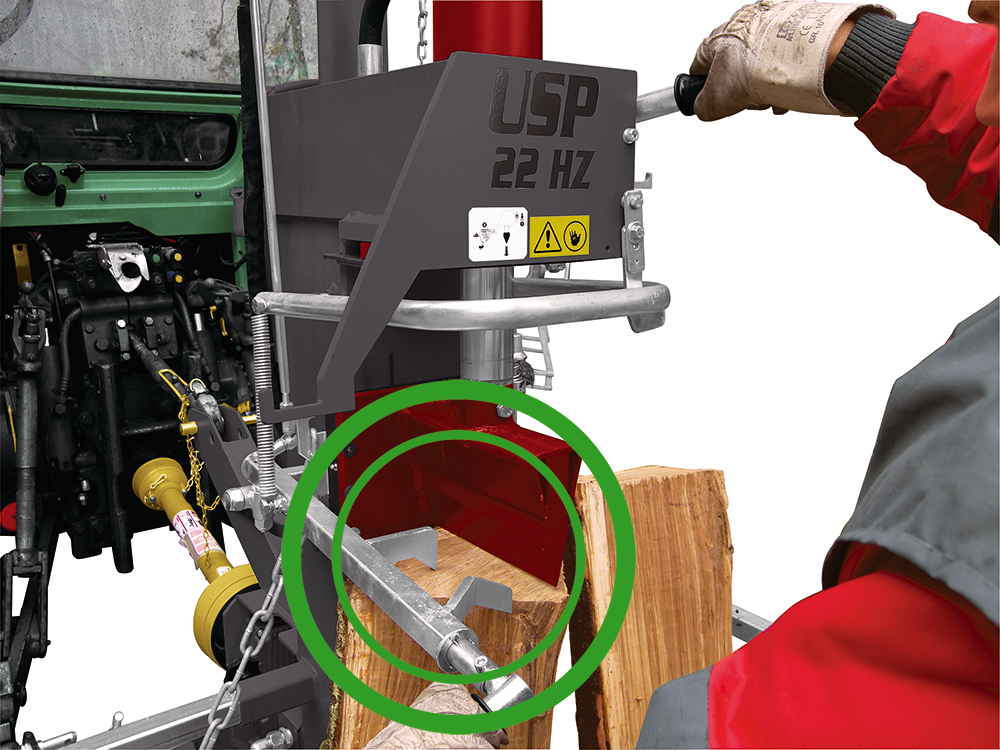

  • Log fenders and log lifter in price
