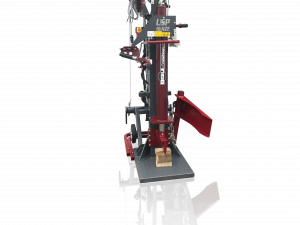

Vertical Log Splitter USP 13 HZE/7

The USP 13 HZE/7 is characterized by a combined PTO drive and electric motor. This 13 tonne splitter is operated both by the tractor and stationary.

Category: SKU: 93622

Additional information


Combination power with PTO shaft and electric motor 400 V, 16 A EC-plug

Rated power

Electric Motor: 5,5 kW P1, Tractor power requirement: 20 kW / 27 PS

Splitting power

13 t

Log length

max. 1100 mm

Extended piston rod (all UP)

1050 mm

Cylinder forward speed w. PTO drive

9/7/1050 s/mm

Cylinder return speed with PTO drive

5/1050 s/mm

Cylinder forward speed w. electric drive

15/8/1050 s/mm

Cylinder return speed w. electric drive

6/1050 s/mm

Height w. retracted cylinder (down)

2000 mm

Height with uplifted cylinder

2800 mm

Dimensions (W x H x L)

800 x 2000 x 1200 mm



  • according to the European safety standard EN 609-1
  • Two-stage control valve for increased ram forward speed (fast splitting cycle)
  • Stainless brass pads allow smooth sliding of the wedge and longer frame life.
  • Mechanical two-hands control
  • Fully retractable ram for road transportation and storage purposes
  • Solid steel frame with inbuilt hydraulic oil tank
  • Advanced technology with cast iron pumps – reduced noisefor PTO variants
  • Log lifter in price
