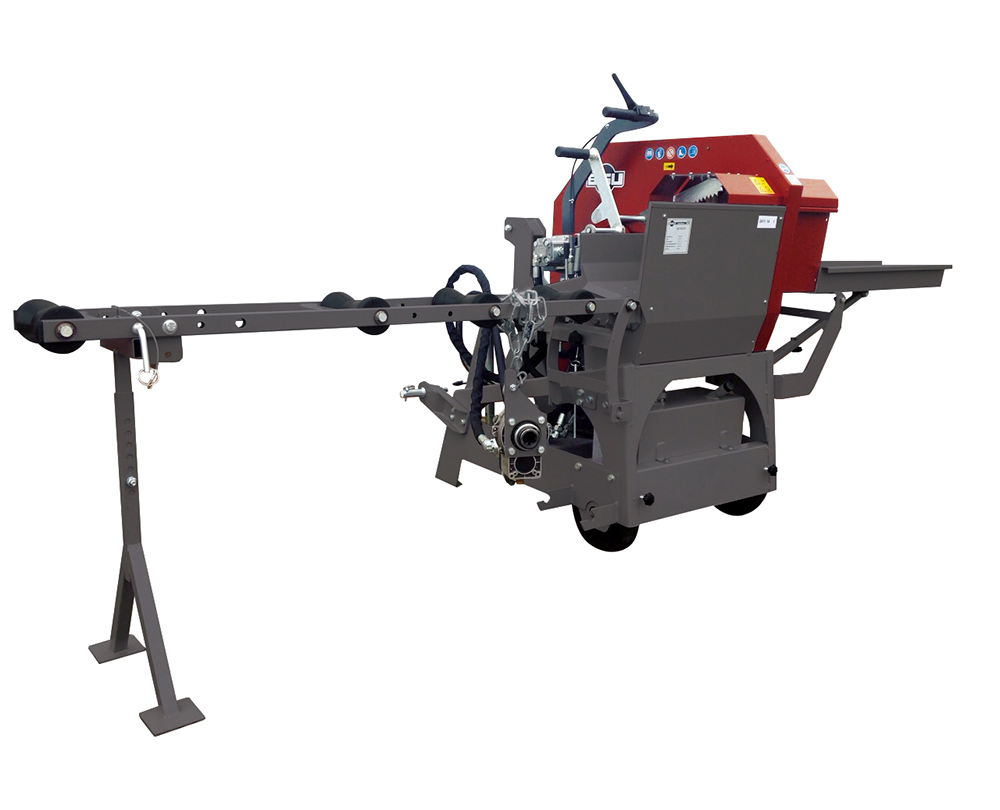

Cross-cut saw KS 700 Z

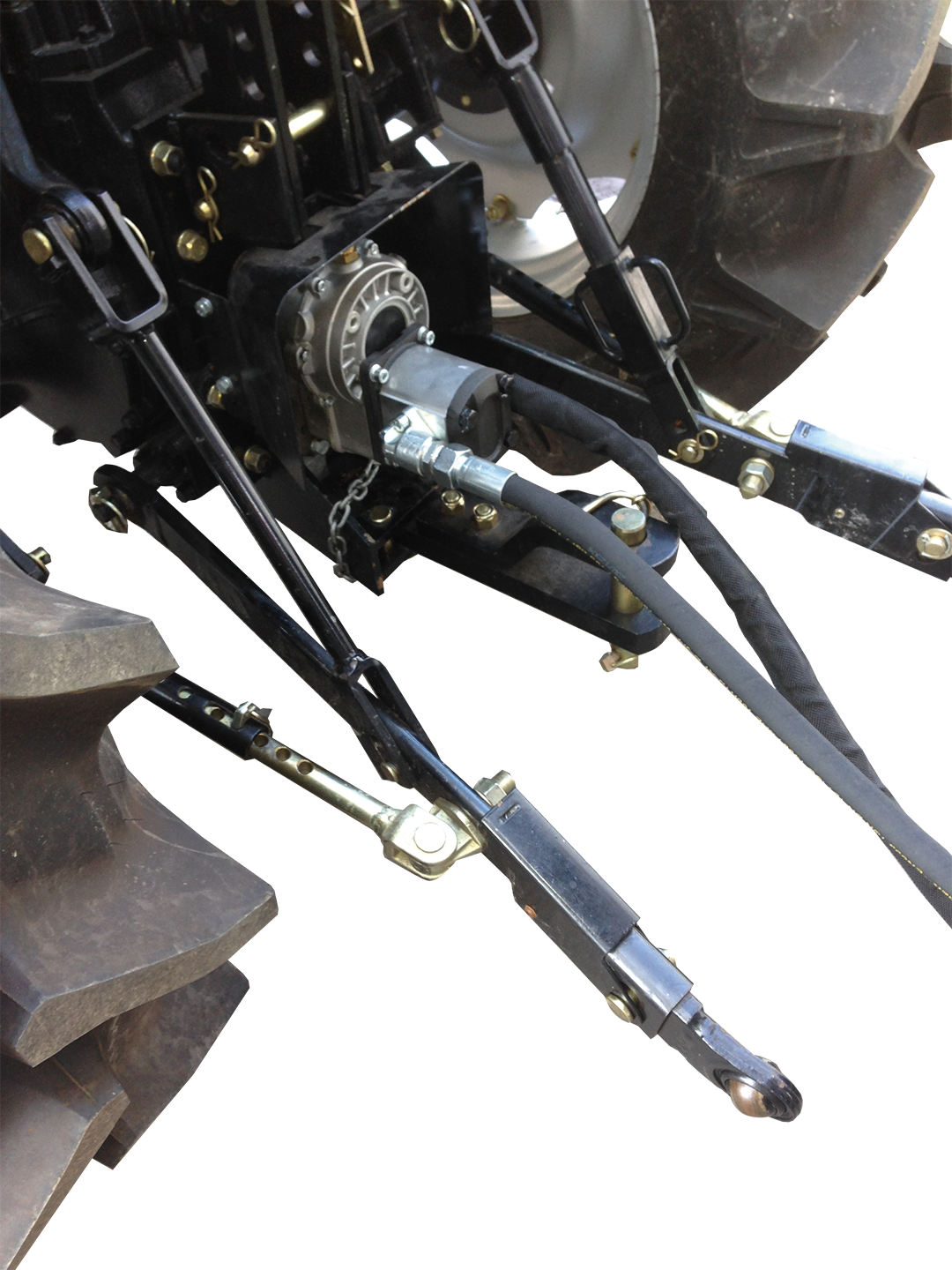

The KS 700 attaches directly to your tractor hydraulics. The saw blade is powered by the tractor hydraulics via PTO shaft and shaft-mounted gear pump (built-in hydraulics). The ideal cutting performance is already available when the PTO shaft rotates at 300 rpm.

Category: SKU: 90189

Additional information

Antrieb

PTO shaft

Antriebsleistung

Approx. tractor power 15 kW / 20 PS

Pumpenleistung

approx. 20 l/min (4.4 gal/min)

Drehzahl Sägeblatt

1500 rpm

Schnittiefe Ø

approx. 250 mm (9.8 in)

Sägeblatt Ø

700/30 mm (27.5/1.2 in)

Abmessungen (B x H x T)

1170 x 1400 x 1080 mm

Gewicht

250 kg (551 lb)

Description

  • Equipped with standard Widia saw blade, and log retainer.
  • All 700 models are equipped with standard graduated ruler (to control the log length), and outlet conveyor included in price.
  • An infeed roller table can be attached to the machine on request
