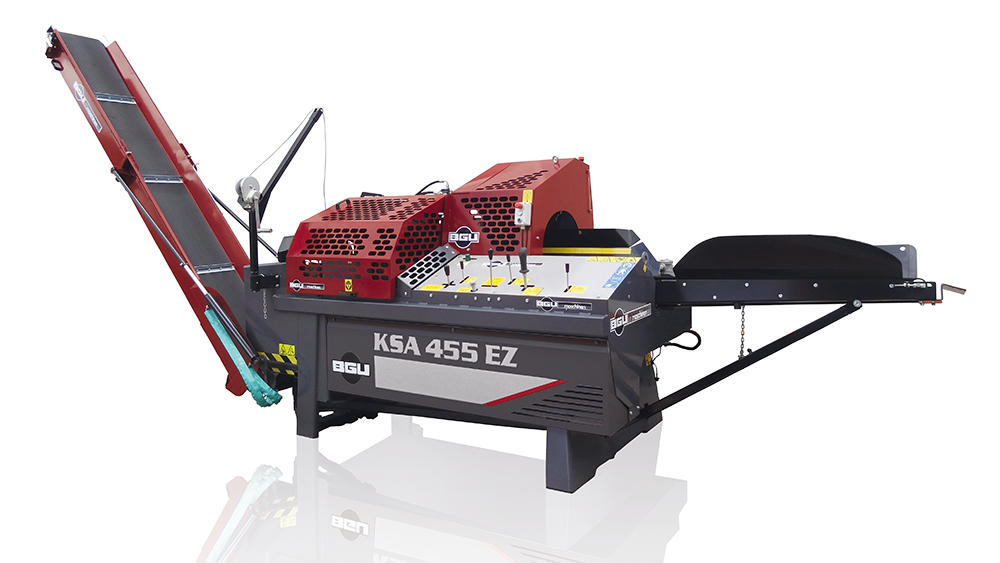

Automatic Chainsaw Processor KSA 455 EZ Select

The sawing and splitting machine KSA 455 EZ Select is suitable for logs up to 45 cm and has a PTO and electric drive.

Category: SKU: 90926

Additional information

Antrieb

Electric 400 V, 32 A EC plug, Delta-Star switch, PTO shaft

Antriebsleistung

Electric Motor: 15 kW P2 / 20 kW P1, Tractor power requirement: 20 kW / 27 PS

Schnitt Ø

max. 450 mm

Scheitlänge

Adjustable 200–660 mm (7.9 – 26 in)

Sägeschwertlänge

20"/508 mm

Kette

.404˝ / 1,6 / 71 TG

Ölvorrat

100 l

Spaltkraft

24 t

Länge Förderband

4000 m

Gürtelbreite Förderband

400 mm

Transportstellung (B x T x H)

3300 x 1800 x 2600 mm

Abmessungen (B x H x T)

8500 x 3100 x 1800 mm

Gewicht

2350 kg

Description

  • Hydraulic infeed belt and wedge lift included in price
  • Dual power: the variant KSA 455 EZ can be PTO-powered from the tractor or by the built-in electric motor
  • Powerful electric motor with 15 kW power output = 100% power-on time and 20 kW input power
  • Two splitting rams respectively: 70 mm (2.7 in) and 100 mm (3.9 in)
  • Standard 8-way wedge
  • Automatic activation of the second ram with 24 t (23.6 lt) splitting force
  • Hydraulic push-down for safe cutting of the last timber piece

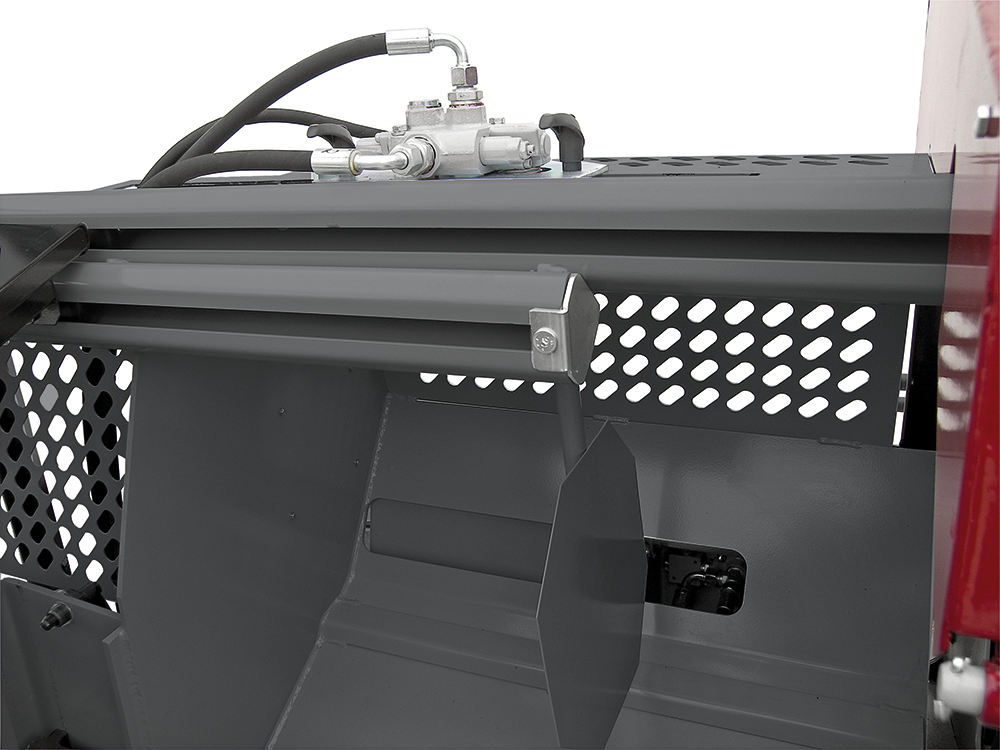

  • Hydraulic slider to control the rolling of the logs into the splitter carriage
