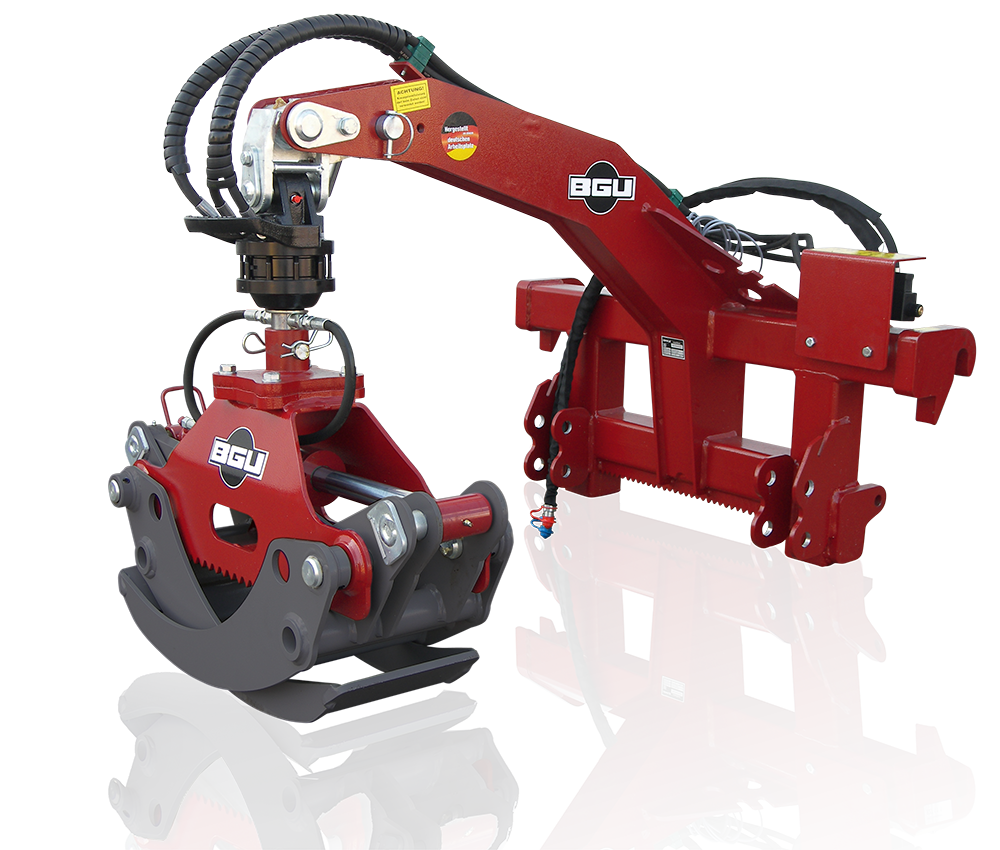

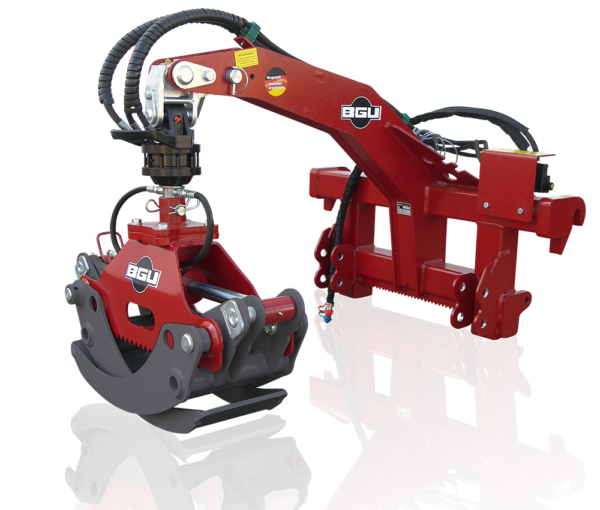

Log grapple HVZ 1300

The HVZ 1300 is a low-cost alternative for small timber contractors and
tractor power from 30-60 kW. The log grapple is suitable for front loader with EC-Mount. In addition, the HVZ 1300 is equipped with a rotator as standard.

Category: SKU: 96243

Additional information

Power

from the tractor hydraulics

Power requirement

Tractor 40 kW / 55 PS

Opening range

HG 1300 (90 – 1280 mm)

Clamping force

9,5 t

Weight

230 kg (507 lb)

Description

  • HVG 1300 grapples
  • Universal joint
  • 3.0 t (2.95 lt) rotator – 900 Nm
  • Efficient and safe timber handling
  • Modern proven technology
  • Equipped with standard rotator
  • Suitable for front loaders with only one double-acting control valve
  • Optional safety skid
  • Optional electric reversing valve
